Descriptions

The TS350 Series Dispenser/Controller is equipped with digital
timer, pressure and vacuum read out on a large LCD. The firmware
provides the option of programming up to 10 varied, sequenced or
individual shots. It is intuitive to use, dispenses low, medium and
high-viscosity fluids accurately and consistently.

The TS350/355 Series includes a vacuum-driven “suck-back” to
control material “tailing” and waste and to control drips of fluid
between dispense cycles. These systems have user programmable
manual (purge) and automatic dispense cycle settings (program and
time) and they feature a “Teach Mode” for determining the
dispensing time required when dispensing output is unknown.

Packaged ready to use with a universal power supply, foot switch,
air hose, sample tips, syringe barrel and adapter. Features a small
footprint and is lightweight.

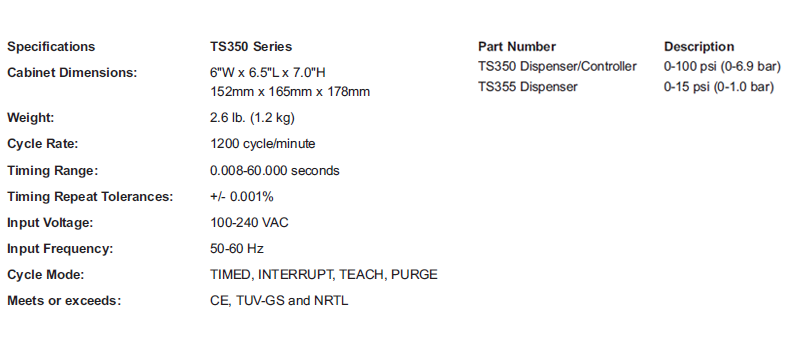

Available in two versions of operating pressure: 0 to 100 psi
(0-6.9 bar) for general applications, and 0 to 15 psi (0-1.0 bar) for
specific low viscosity applications.
