Descriptions

The TS9200D Jet Tech is a non-contact dispense valve capable of jetting fluid viscosities to 400,000 Cps. Jet Tech offers a fast jetting action producing hundreds of precise droplets in less than one second.

The main feature of the valve is a single, easily replaceable diaphragm to eliminate dynamic fluid seals found in other jet valves. No longer is it necessary to disassemble, clean and replace worn seals, which translates into saving time and money. The diaphragm also allows fast cycle rates because of its very small mass. There is no large sliding valve stem that slows down the process. With this novel diaphragm design, the energy needed to eject a drop can be adjusted providing a wider process window.

The TS9200D Series Jet Tech is available in the following configurations:
• TS9200D-125E Jet Valve EPDM Diaphragm, 125µm Nozzle
• TS9200D-150E Jet Valve EPDM Diaphragm, 150µm Nozzle
• TS9200D-200E Jet Valve EPDM Diaphragm, 200µm Nozzle
• TS9200D-125S Jet Valve Silicone Diaphragm, 125µm Nozzle
• TS9200D-150S Jet Valve Silicone Diaphragm, 150µm Nozzle
• TS9200D-200S Jet Valve Silicone Diaphragm, 200µm Nozzle

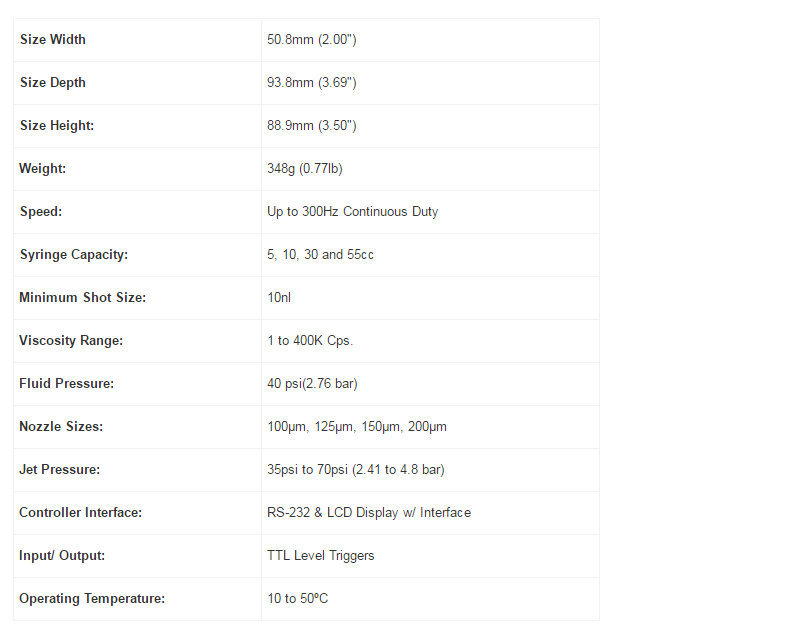

Fueatures
• No fluid seals to clean or replace
• Up to 300 drops/ sec
• Outstanding repeatabilty
• Viscosities up to 400K cps
• Drops as small as 10nl
• Integral heater with minimal fluid heated
• Tungsten carbide internal components for long life
• Quick and simple maintenance
