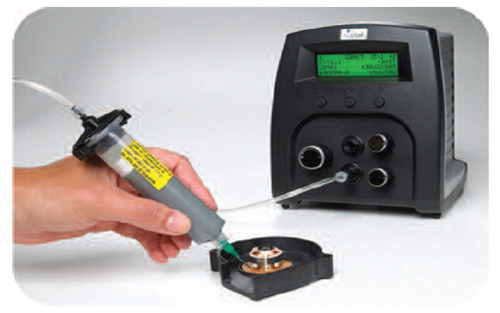

Digital Dispenser/Controller
The TS350 Series Dispenser/Controller is equipped with digital
timer, pressure and vacuum read out on a large LCD. The firmware
provides the option of programming up to 10 varied, sequenced or
individual shots. It is intuitive to use, dispenses low, medium and
high-viscosity fluids accurately and consistently.
The TS350/355 Series includes a vacuum-driven “suck-back” to
control material “tailing” and waste and to control drips of fluid
between dispense cycles. These systems have user programmable
manual (purge) and automatic dispense cycle settings (program and
time) and they feature a “Teach Mode” for determining the
dispensing time required when dispensing output is unknown.
Packaged ready to use with a universal power supply, foot switch,
air hose, sample tips, syringe barrel and adapter. Features a small
footprint and is lightweight.
Available in two versions of operating pressure: 0 to 100 psi
(0-6.9 bar) for general applications, and 0 to 15 psi (0-1.0 bar) for
specific low viscosity applications.

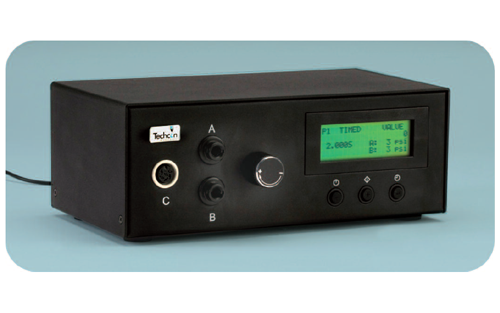

TS500R Multi-Purpose Digital Controller
Cost-Effective and Productivity-Focused Multi-Purpose Digital Controller
The TS500R is the first of its type in the industry and is capable of controlling all of Techcon Systems valve series including:
Pneumatic Valves, Spray Valves and Rotary Auger Valves.
With a universal power supply, it is a fully ‘plug and play’ system and can be used immediately, anywhere in the world, with its
accompanying tools and accessories. This system uses a highly responsive air pressure management system, coupled with a digital
timing circuit and display, to provide consistent, repeatable control of all types of valves.
Key Features:
• Universal power supply with snap-on plug
• Clear 20 x 4 segments LCD display
• Classic “Rack Mount” rectangular design
• Digital timing from 0.008-60.000 seconds
• Digital pressure display in “psi” and “bar”
• +/- 0.001% Repeat timing tolerances
• 10 Programmable memories
• Adjustable low pressure alarm setting
• Controls all Pneumatic, Spray and Rotary
Auger Valves (inc. Encoder Motor Valves)

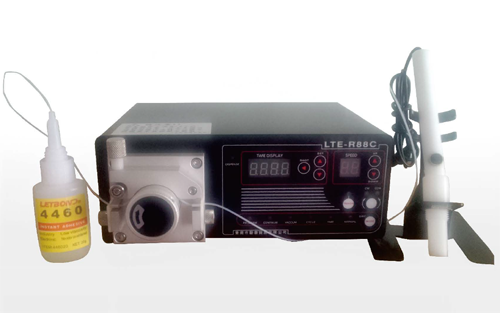

LTE-R88C
Machine Features
◎ designed specifically for low viscosity materials
◎ Digitalpanel design (Channel 30 groups memory function)
◎ gyrator and infusion tube is easy to disassemble
◎ easy to learn, learning to save time
◎ apply instant glue and solvent glue
◎ can be linked to automated dispensing robot arm

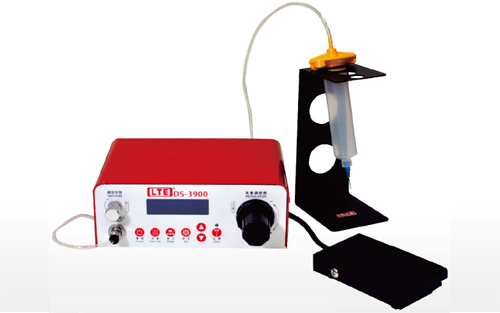

LTE-DS-3900
Machine Features
Expertise:
◎ have corrected output airpressure and vacuumpressure function
◎ with automatic compensation function, maintain the stability of dispensing volume
Convenience:
◎ variety of dispensing modes for a variety of dispensing applications
◎ all-digital display, operation is simple and convenient
Humane:
◎ settingplastic material time, toprevent the adhesive material change
◎ spit gum set automatic timer function toprevent clogging of the needle ◎ with I / O function, can use more than one dispenser series
◎parameters with locking function toprevent human error
◎ can detect inputpressure to avoid changes in airpressure generated Dispensing exception

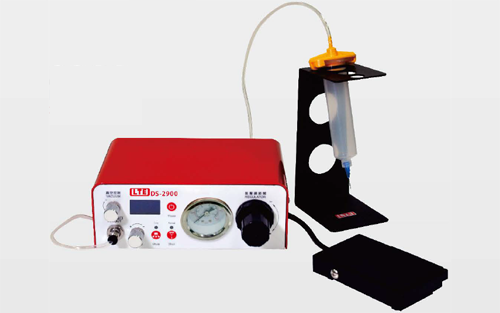

LTE-DS-2900
Machine Features
◎ full voltage supply design for differentplaces
◎ Can be used with automatic machines, Robot widely used
◎ glue time digital display,precise control
◎ glue time can be set from 0.001-9999 seconds
◎precision fixed flow solenoid valve
Digital Dispenser/Controller
The TS250 Series Dispenser/Controller dispenses low, medium
and high-viscosity fluids accurately and consistently. These
systems are economical, highly accurate and repeatable micro-air
dispensing systems. These user friendly fluid dispensing systems
include digital timer with rotary control time knob for easy setup,
and a vacuum control for all viscosities of fluids.
Packaged ready to use with a universal power supply, foot switch,
air hose, sample tips, syringe barrel and adapter. Features a small
footprint and is lightweight.
Available in two versions of operating pressure: 0 to 100 psi
(0-6.9 bar) for general applications, and 0 to 15 psi (0-1.0 bar) for
specific low viscosity applications.
