Descriptions

The TS7000 Series IMP Rotary Valves are the latest additions to the
Rotary Microvalve family. The valve uses a feed screw (auger) to
dispense fluid with a rotary displacement action, allowing ultra-precise
control of the dispensing process. The valve’s modular design allows
quick and easy replacement of the feed screw/chamber cartridge
assembly without removing the valve from the machine. In addition, the
valve cartridge can be interchanged to use with TS5000DMP feed screw
inserts.

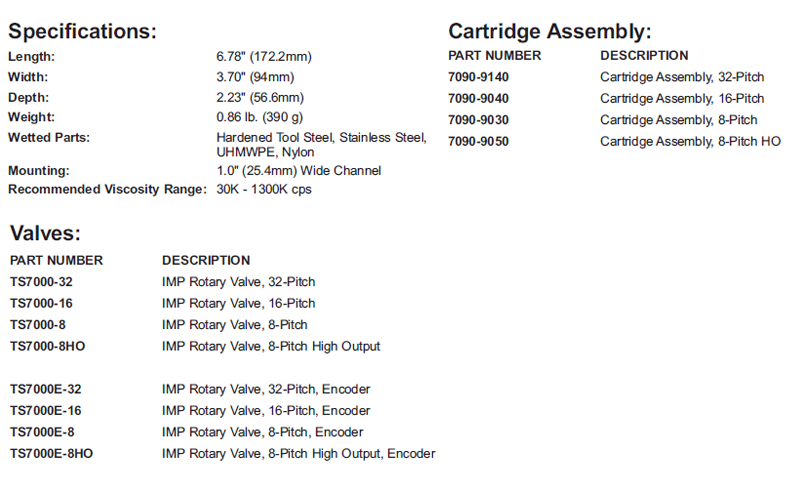

The TS7000 Series IMP valve is available in 4 choices of feed screw
sizes (32-pitch, 16-pitch, 8-pitch and high output 8-pitch), all made of
precision hardened tool steel. An encoder motor version is available for
applications that require closed-loop motor control with encoder feed
back.

Typical Applications:
Solder Paste, Die Attach, Surface Mount Adhesive (SMA), Chip
Encapsulation, Dam Writing, Thermal Grease.

Key Features:
• Accurate and repeatable dispensing output
• Precision and durable feed screw/chamber
• Field replaceable spare parts
• Quick and easy feed screw/chamber cartridge changeover
• Low-maintenance design
• Interchangeable with TS5000DMP valve body
• Flexible syringe mounting position
• Flexible needle installation position
• Flexible encoder position (encoder version)
• Closed-loop motor control with encoder feed back (encoder version)
